Contactor Series LC1F225 Schneider - AC3: 110kW 315A at 400V LC1F

Schneider

(No reviews yet) Write a Review
List Price: £1,177.81
£706.69
(You save £471.12 )
Contactor LC1F225 Schneider 110kW
SKU:
LC1F225
EAN/UPC
3389110230871
Condition:
New
Availability:
Ships the same day if ordered before 2pm.
Weight:
3.90 KGS
Shipping:
Calculated at Checkout

Currently out of stock. Please ask for availability.

Try to see FAQ for possible quick answer.

Product Overview

Contactor Series LC1F225 Schneider - AC3: 110kW 315A at 400V LC1F wihtout a coil.

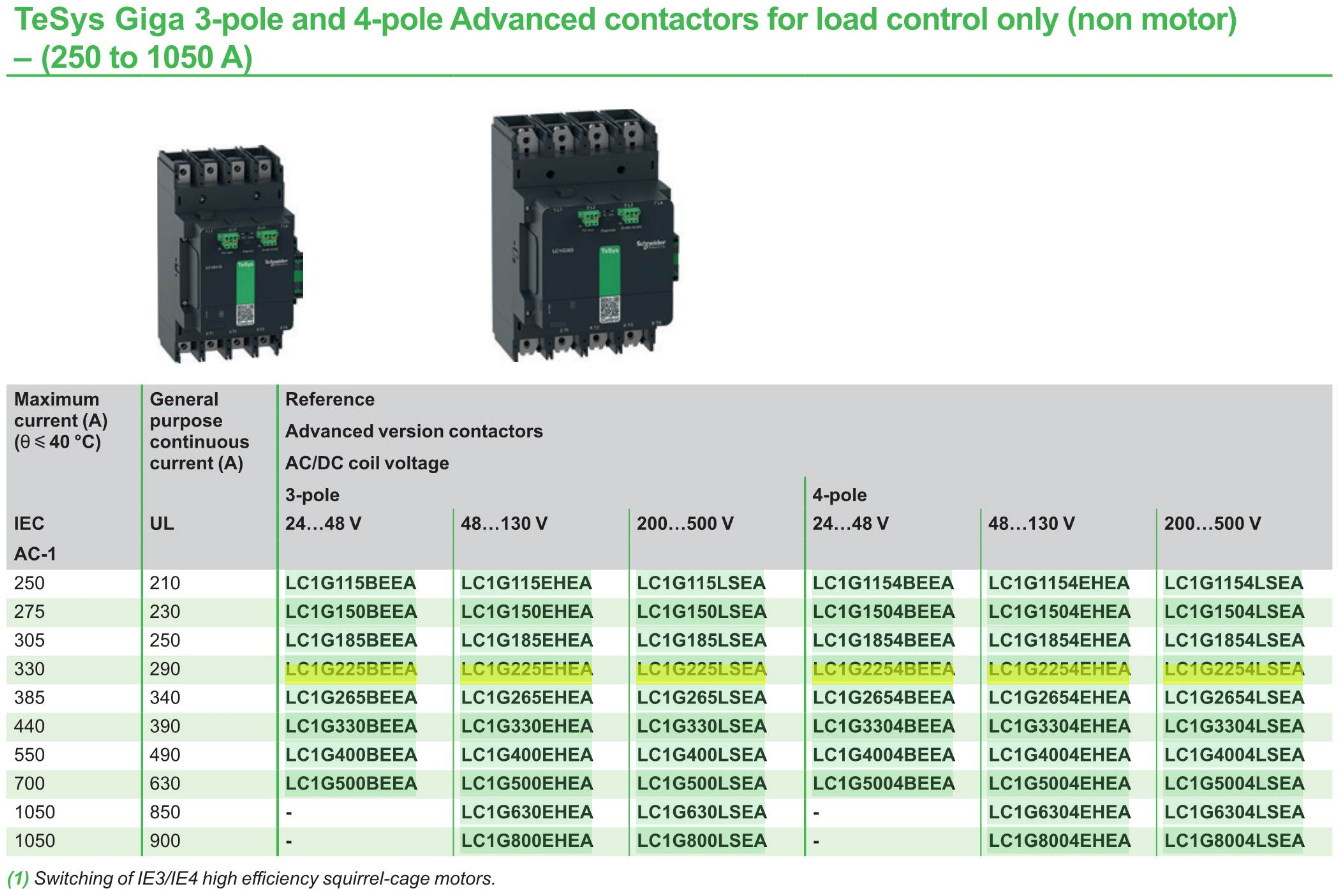

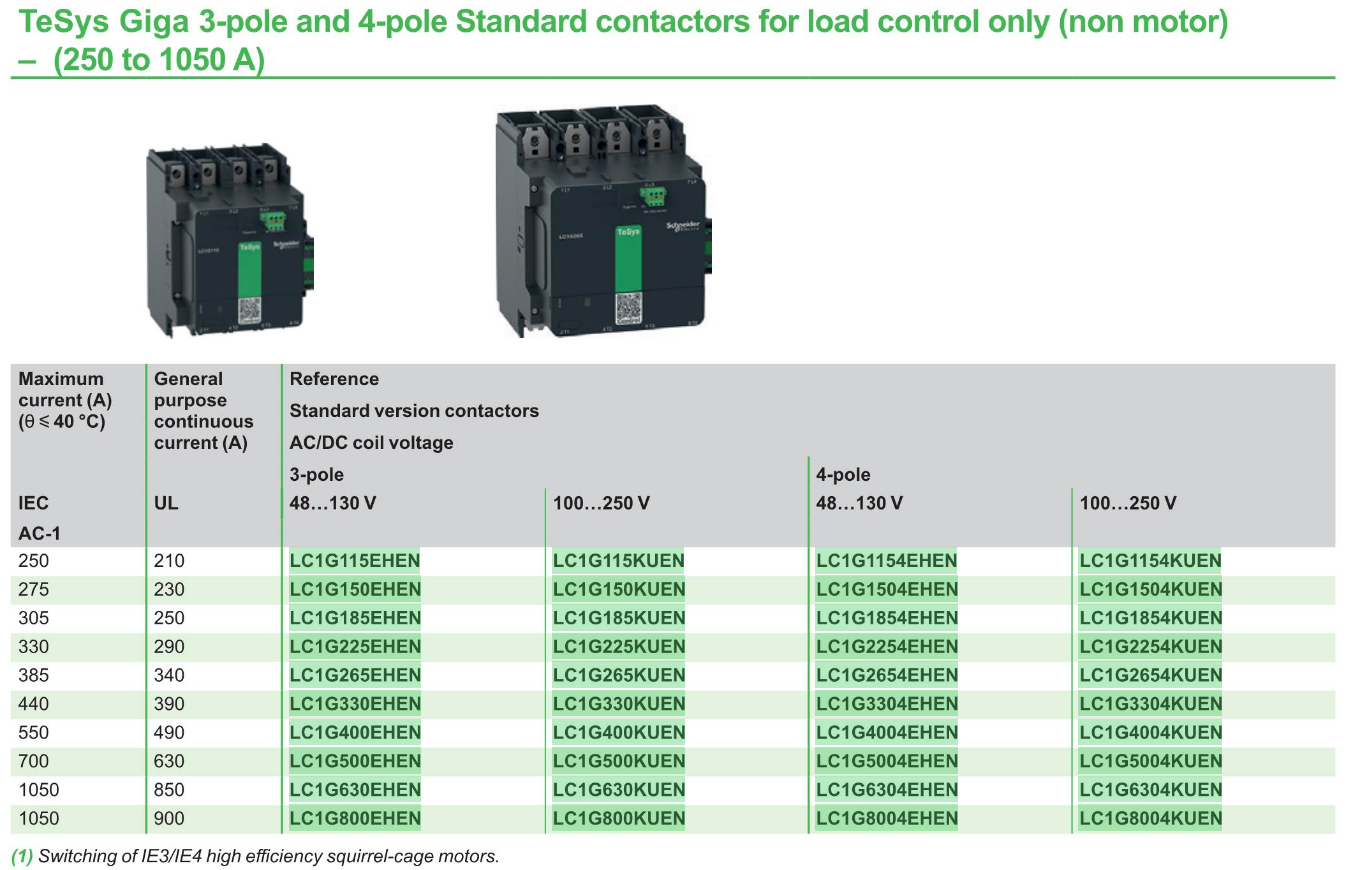

This is now obsolete and recommended replacement is LC1G225. These contactors have built in coil so you have to choose one with the appropriate coil.

Attributes
Series TeSys F
Application Motor Control
Power Rating AC-3 63kW @ 230V | 110kW @ 400/415/440V | 129kW @ 500/690V
Current Rating 315A @ 440V AC-1
Voltage Rating 1000V AC 50/60Hz
Rated Withstand Voltage 8kV
Standards IEC / EN 60947-4-1 | JIS C8201-4-1

Contactor LC1F225 AC3 @ 400V 110kW



With recent global supply shortages, well-stocked suppliers like Axxa are crucial to keep you operational.
We stock all combinations of contactors, ready to easily replace your contactor should it fail, no matter which manufacturer.

- Speak to fully trained staff straight away
- Your solution is on our shelf
- Same day deliveries available
- Installation service available

mechan controls MS5 group picture



Main Pole Number

2, 3 or 4. Labelled L1, L2, L3, L4 at the top, and T1, T2, T3, T4, at the bottom.

Auxiliary Contact Configuration

Separate to the main poles, these can be any combination in quantity of what's called 'Normally Open (NO)' and 'Normally Closed (NC)' contacts added to the front and/or side of the contactor.

Label Format: 2-digit number ending in 3 or 4 for Normally Open (NO), 2-digit number ending in 1 or 2 for Normally Closed (NC). Usually something like 13, 14 (for NO) or 21, 22 (for NC).

mechan controls MS5 group picture

Power rating

You are looking for the kW (kilowatt) value shown on the AC3 table on or around 400V. This is usually a sticker on the front or side of the contactor.
You can select a value a bit higher than your contactor but not lower.

mechan controls MS5 group picture

Coil Voltage

Often called the Control Voltage and often a lower voltage value than the main power voltage.

This is the most common mistake people make when ordering contactors. The voltage can be AC and/or DC and it is often found somewhere separate from the main information sticker. Always labelled A1 and A2.

mechan controls MS5 group picture

Other things to consider:

Is there installation space on the front and side?
Is there anything physically attached to the contactor? Example: Overload relay, time delay modules, other contactors etc)
