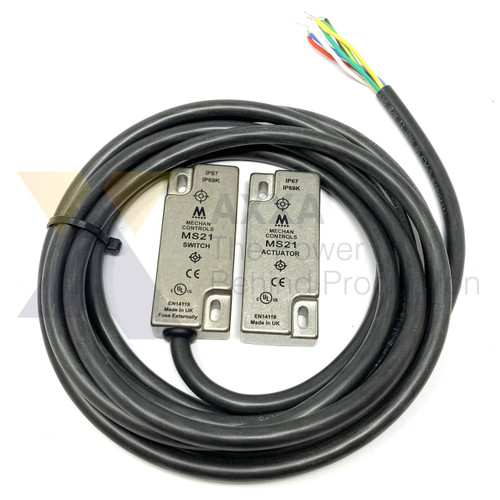

Mechan Controls - MS21-SS-10-110AC-03M, Magnetic Safety Switch and Actuator, 1NO, 110VAC, Stainless Steel 316, 3m pre-wired Cable

Upgrade the safety of your machine guard with the Magnasafe range of magnetically operated safety switches by Mechan Controls. Easy to install and maintain, tolerant to misalignment, these switches are fully encapsulated & non-contact, making them perfect for long term use in harsh / wet environments. In situations where you need doors to be unlocked for quick access, but still safe for the human operator, these are the solution.

Operation

The Magnasafe range are magnetically operated, they use high quality reeds and magnets to open and close the safety / auxiliary contacts.

How does Mechan describe the contact configuration? (IMPORTANT)

Mechan Controls describe the state of the safety contacts as N/O (normally open) and the auxiliary contact as N/C (normally closed) when the door is open and not within operating distance.

Volt Free Outputs

Volt free contacts are invariable mechanical contacts. In order to form a safety circuit, connection to monitored safety inputs is required.

Tolerant to Temperatures

Standard -10°C to 55°C. High temperature version capable of reaching 125° C.

Compliance

IP67 and IP69K Tested, CAT4, SIL3, PL-e, ISO 13849-1, IEC 62061, EN14127

- 316 Stainless Steel Housing
- Wide bodied design
- IP67, IP69K Tested
- 1Amp Safety Output Rating
- AC Versions Available
- 10mm Operating Distance
- Tolerant to Misalignment
